SWAN Lady, 2023-1 /29"/

New

SWAN Lady, 2023-1   /29"/
SWAN Lady, 2023-1   /29"/SWAN Lady, 2023-1   /29"/SWAN Lady, 2023-1   /29"/SWAN Lady, 2023-1   /29"/SWAN Lady, 2023-1   /29"/

K23/9/1/2/29/1/20
2 300 EUR

18"
In stock
20"
In stock
16,5"
In stock

The nearest production date: 4.6.2023
Pcs to production: 50

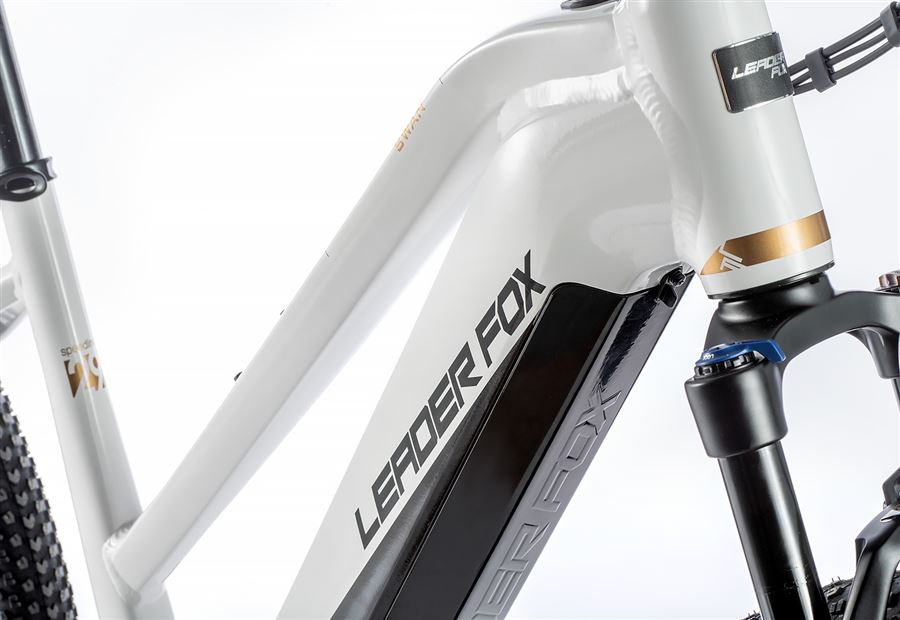

New for season 2023. The SWAN 29" 2023 MTB electric bike with an aluminium frame, sporty design, suspension front fork, disc brakes, and 29” wheels.

The bike newly features an integrated 15 Ah (540 Wh) frame battery with powerful LG cells. Another advantage is a new fast charger with a charging current of 3 A (previously 1.8 A). This significantly reduces battery charging time. The electric bike is equipped with a Bafang M300 central motor with a nominal output of 250 W and a maximum power of 350 W. The motor also boasts a high torque that will allow you to reach up to 80 Nm and is equipped with a speed sensor. The Bafang M300 has quickly ranked among the well-established central drives, especially thanks to its high-quality processing. It also excels in a very smooth operation, above-average performance in climb, and low noise. The system is controlled by a LCD display and a push-button controller located on the handlebars.

  • More info about Bafang motors to find here.


  • Range at a fully charged battery:
    - 70 km on average
    - 110 km at maximum

    The clear LCD displays the following features:
    - Five assist modes
    - WALK function (walking speed, useful for example when walking the bike up a steep hill)
    - Display of current, maximum, and average speeds
    - Distance covered: individual rides/total distance
    - Day and Night modes (display backlight)
    - Battery charge indicator

    Accessories:
    The charger and battery are included.
    Possibility to connect the gear sensor. It is not a part of the package. Can be purchased separately.



    The range of the electric bike depends on multiple factors: the weight of the rider and of the load, the rider’s fitness, the style and nature of the ride, the technical condition of the bike, the temperature, direction, and strength of the wind, the altitude profile of the route, and the characteristics of the terrain (coarse or hilly terrain, frequent starts, etc., that reduce the range).

    Warning:
    In case of incorrect gear shifting (use of "heavy" gears when riding uphill), the control unit may overheat under extreme conditions.

    The model Swan 2021 complies with EU standards. (15194/2017)

    Leader Fox electric bikes are developed and assembled exclusively in the Czech Republic.

    FRAMEALLOY 6061
    FORKUDING D3, TRAVEL:100mm
    BRAKETEKTRO T875, HYDRAULICKÉ, 2 PISTONS
    BATTERYLG 36V/15Ah, 540Wh
    MOTORBAFANG M300, 36V/250W, 80Nm
    DISPLAYBAFANG DP C221, BLUETOOTH
    CHARGER42V/3Ah
    CHAINWHEELALLOY, 38T, L:170mm
    GEAR REARS-RIDE, 11-42T
    FREEWHEEL9 SPEED 11-40T
    SHIFTS-RIDE, 9 SPEED
    TIRESCST,29X2,35
    Technical changes reserved.
