AXEN, 2023-2 /29"/

AXEN, 2023-2   /29"/
AXEN, 2023-2   /29"/AXEN, 2023-2   /29"/AXEN, 2023-2   /29"/AXEN, 2023-2   /29"/

K23/8/2/4/29/2/175
4 400 EUR
Sold out

17,5"
Out of stock
19,5"
Out of stock
21,5"
Out of stock

The nearest production date: 12.5.2023
Pcs to production: 30


New for season 2023. The full suspension AXEN 29'' 2023 MTB electric bike with an aluminium frame, sporty design, suspension front fork, disc brakes, and 29” wheels.

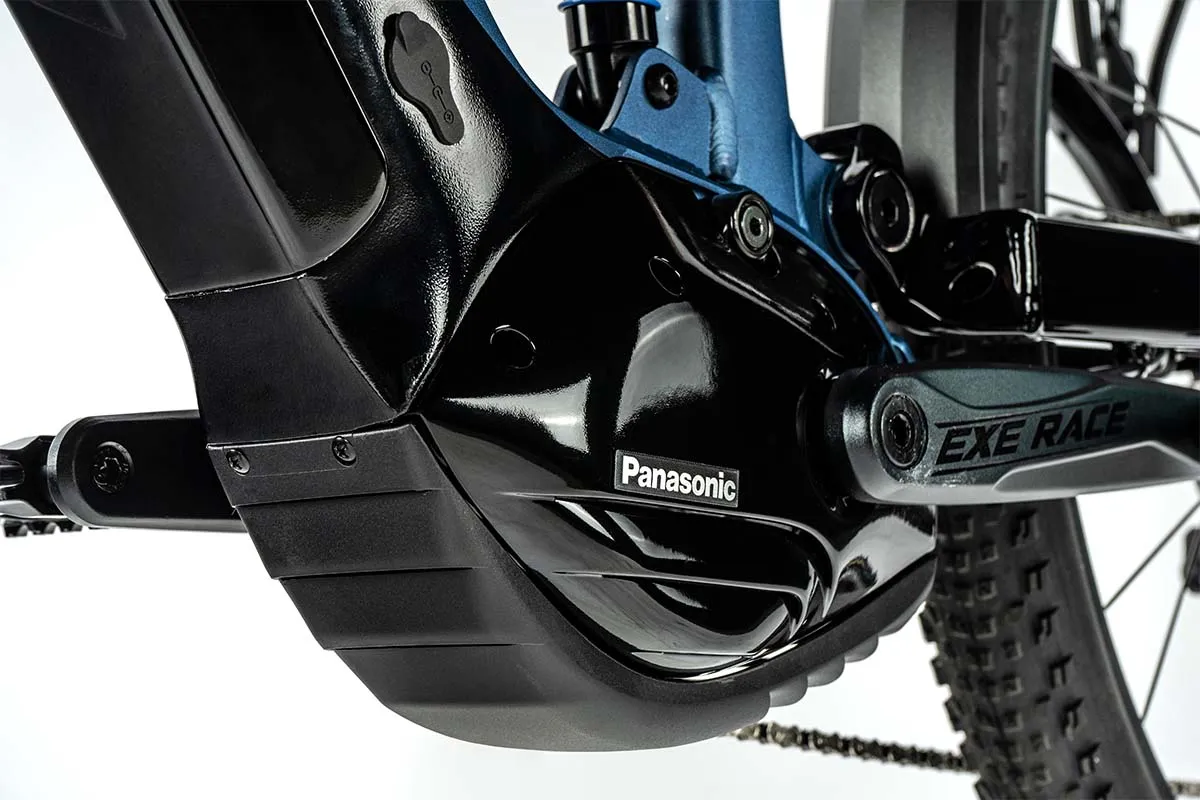

The bike newly features an integrated 20 Ah (720 Wh) frame battery with powerful LG. Another advantage is a new fast charger with a charging current of 3 A (previously 1.8 A). This significantly reduces battery charging time. The electric bike is equipped with a Panasonic GX Ultimate central motor with a nominal output of 250 W. The motor also boasts a high torque that will allow you to reach up to 95 Nm and is equipped with a torsion pedal force sensor. This means that the stronger the rider pedals, the greater help they get from the motor. The Panasonic GX Ultimate has quickly ranked among the well-established central drives, especially thanks to its high-quality processing. It also excels in a very smooth operation, above-average performance in climb, and low noise. The system is controlled by a LCD display and a push-button controller located on the handlebars.

Range at a fully charged battery:
- 100 km on average
- 130 km at maximum

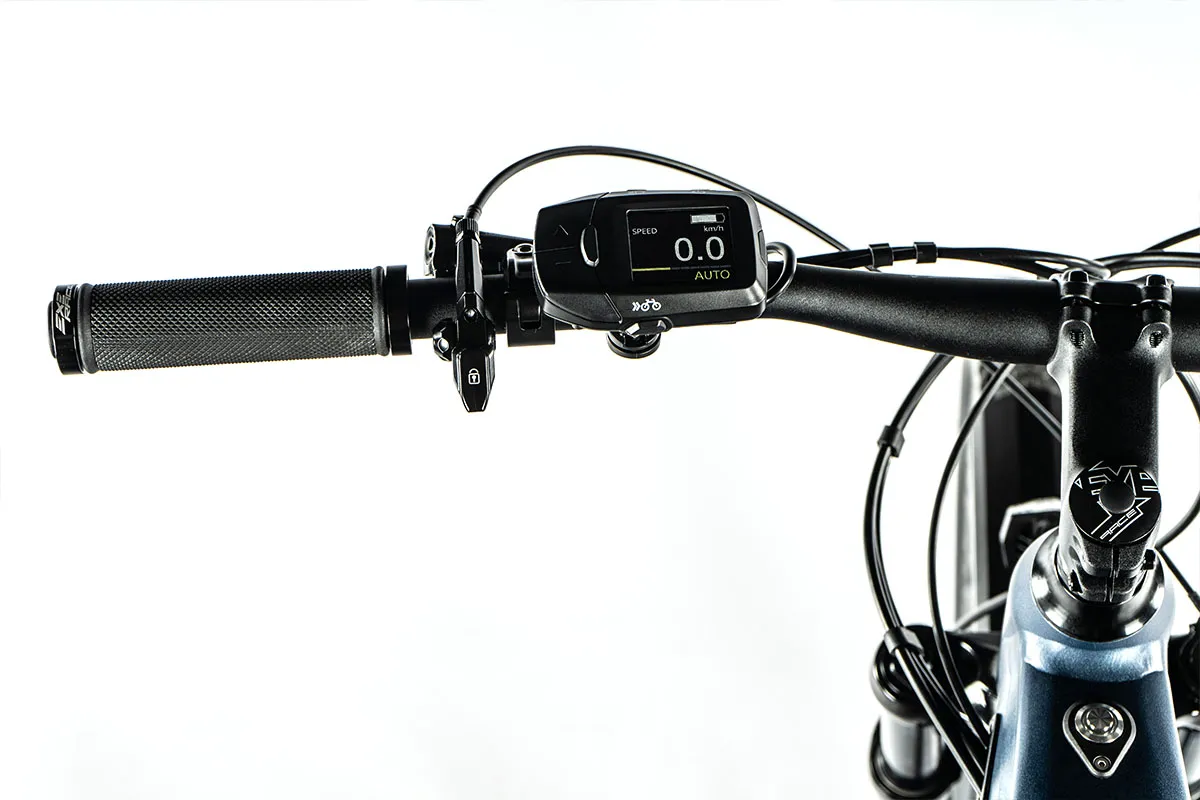

The clear LCD displays the following features:
- Three assist modes
- WALK function (walking speed, useful for example when walking the bike up a steep hill)
- Display of current, maximum, and average speeds
- Distance covered: individual rides/total distance
- Day and Night modes (display backlight)
- Battery charge indicator

Accessories:
The charger and battery are included.



The range of the electric bike depends on multiple factors: the weight of the rider and of the load, the rider’s fitness, the style and nature of the ride, the technical condition of the bike, the temperature, direction, and strength of the wind, the altitude profile of the route, and the characteristics of the terrain (coarse or hilly terrain, frequent starts, etc., that reduce the range).

Warning:
In case of incorrect gear shifting (use of "heavy" gears when riding uphill), the control unit may overheat under extreme conditions. Leader Fox electric bikes are not designed for towing trailers. This would reduce the range of the bike.

Leader Fox electric bikes are developed and assembled exclusively in the Czech Republic.

FRAMEALLOY 6061
FORKUDING UD34 AIR, TRAVEL:100mm
BRAKESHIMANO DEORE, M6100
BATTERYLG 36V/20Ah, 720Wh
MOTORPANASONIC GX ULTIMATE, 95Nm
DISPLAYPANASONIC
CHARGER42V/3Ah
CHAINWHEELALLOY, 38T, L:170mm

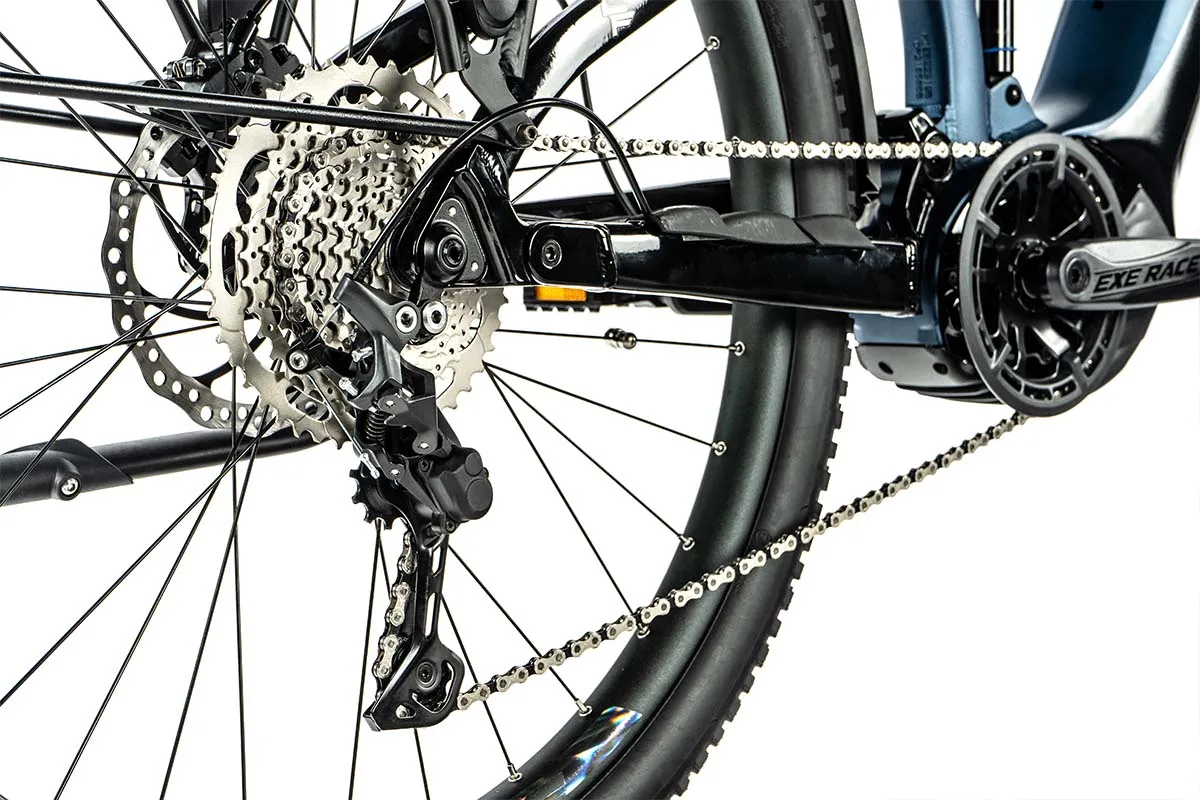

GEAR REARSHIMANO DEORE
SHIFTSHIMANO DEORE, 10 SPEED
ROTOR Ø:180mm

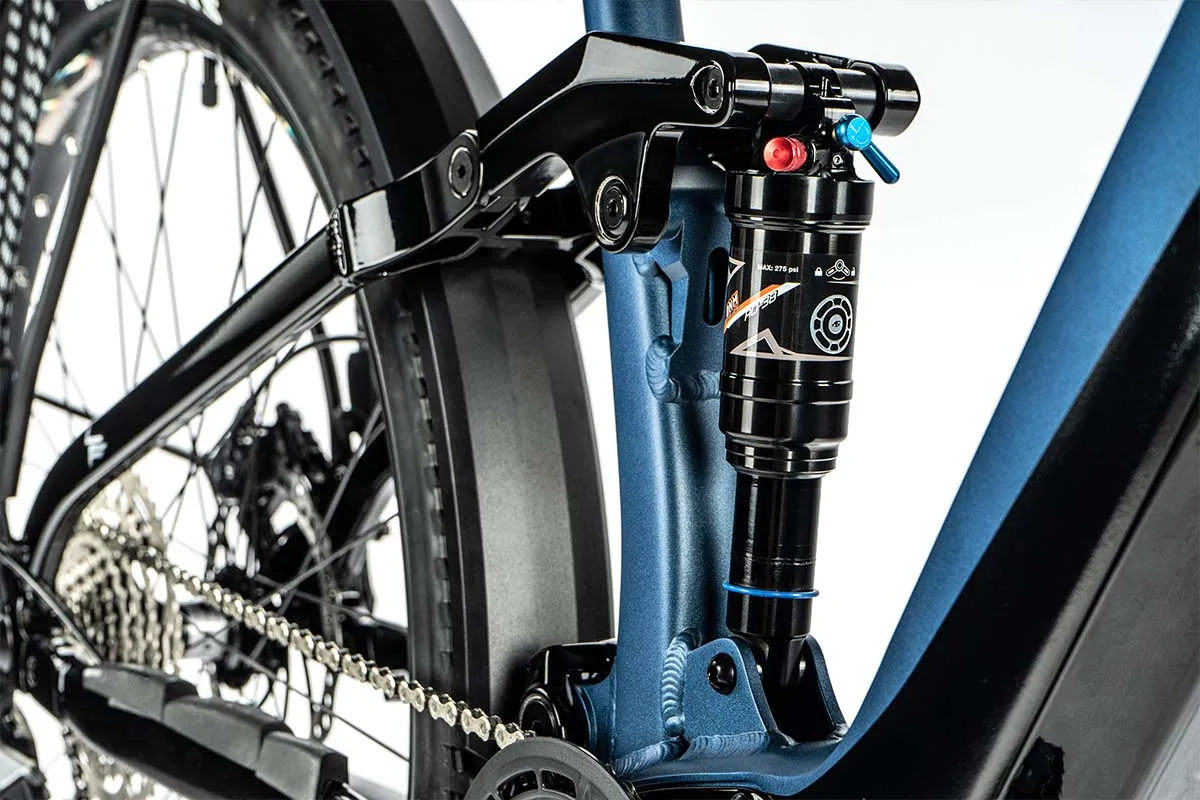

REAR SHOCKDNM,190X50 AIR
TIRESMAXXIS RECON RACE 29,5X2,25
Technical changes reserved.
